Using T Gauge within O Gauge

The place for general discussions and requests for help on all matters relating to T gauge.
Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Using T Gauge within O Gauge

Post by Switcher102 »

I believe there are a few modellers out there who use T gauge to represent one of the smaller gauges that we have in the real world. Well this is my effort so far in that field. My scale is O scale and within that scale T gauge represents 5 inch gauge. I have had a go at making a coach for that gauge and this is shown in the photo. Also included in that photo is a representation of 15 inch gauge (the green Britannia - N gauge) and 2 foot gauge behind that, and then standard gauge.

Now, the thing is, I have converted to Battery Powered Radio Control (BPRC) for all my stock, and do you know what? I reckon I can convert T gauge to BPRC. Because I am using it to represent 5 inch gauge, and my driver has to sit on a wagon behind the locomotive, that wagon can be permenantly attached, and as you can see in the photo it will be bigger than the T gauge stock. Electronics is getting smaller and smaller these days and there is a receiver small enough to fit inside such a wagon, and if button batteries will be sufficent I reckon it can be done. I have a very tiny reed switch and equally tiny magnet that can switch it on, and all that can fit inside such dimensions. I am also aiming to go one step further and make the driver's head turn for when going backwards ..... eeeek!

A tall order perhaps but I've got it all planned and I'm going to have a go. One of the big beauties I like of BPRC, apart from no track wiring, is the fact that you get constant power. There's no stuttering, no hesitation over dirty track, you can go as slow as you like over points, and go anywhere on other layouts.

This use of T gauge offers another avenue for sales, except I doubt if my efforts will persuade other O gauge modellers to have a go. Most O gauge modellers find even N gauge too small to see and handle, but you never know. I think T gauge is more likely to be used by OO/HO modellers, in which I think T gauge represents 15 inch gauge, and I think the Garden Motor Car is for that use is it not? Anyway, watch this space for O gauge's use of a such a wonderfull fascinating gauge.

Rich
Attachments
5 Inch G Coach 1-s.jpg
5 Inch G Coach 1-s.jpg (232.86 KiB) Viewed 15759 times

mattinair
Posts: 222
Joined: Wed Feb 11, 2015 10:02 pm
Location: Sebastopol California

Re: Using T Gauge within O Gauge

Post by mattinair »

Radio control neat!
There's a guy on Tgauge.com 's facebook page who's doing a 1/450th scale Godzilla attacking a T gauge train :o .......The tiny size makes so many things possible... :D

mattd10
Posts: 205
Joined: Wed Nov 13, 2013 10:12 pm
Location: West Sussex, UK
Contact:

Re: Using T Gauge within O Gauge

Post by mattd10 »

I'll be following this with interest and I love the idea of using T for narrow gauge but have never gotten around to it myself! Best of luck with it!

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

That's good Matt, thanks. Ordered my first T gauge locomotive yesterday, the Garden Motor car, 2 metres of wider sleeper flexi track, and a pack of adjustable chassis. Long way to go yet, you know how it is, more than one project on the go at the same time. Next thing to get is the radio receiver and battery. Look how small you can get receivers these days:- http://www.deltang.co.uk/rx31b.htm .

Incidentally, if anyone does fancy converting T gauge (as standard gauge, not what I'm doing) to wireless control well, after you've stopped laughing, have a look at a new thread I will post shortly. I was typing it out here but actually I think the subject deserves its own thread.

Rich

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

Received my first T gauge locomotive yesterday. I don't have a T gauge controller because as mentioned above I am aiming to convert it to battery powered radio control but I would like to test it. I am thinking that it would be fine to test it with one of these … http://www.gaugemaster.com/item_details ... gemaster+D …. as long as I don't turn the dial up high.

My way of testing a locomotive doesn't involve just wacking the dial up and get it going, so connecting it to a suitable battery would not be a sufficient test for me. I need a potentiometer because my main concern when testing is to see how accurately it starts and stops. I would only need to simulate about 30mph scale speed, if even that. I have a multimeter so I could connect it to the tracks and watch the voltage. Is there anything else I should be concerned about when testing it with the Gaugemater controller linked above?

Rich

mattd10
Posts: 205
Joined: Wed Nov 13, 2013 10:12 pm
Location: West Sussex, UK
Contact:

Re: Using T Gauge within O Gauge

Post by mattd10 »

I would be wary, as the commercial controllers run off of 3xAA batteries or a low voltage transformer. I don't know what the current output of the T gauge controller is but I suspect its lower than the gaugemaster and that is going to be the issue. I don't have my stuff to hand but I'm sure someone can advise the current output of a standard controller to see if it's compatible. In the past I've used a cheap PWM motor controller from ebay but powered it with 3 AA batteries so I know I won't blow anything or cause any damage!

Cheers

Matt

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

Thanks Matt. I'll give that a miss then. I'll wait untill I get the radio control equipment, and ask Alan at T Gauge Central about the current limit.

Accurate movement is an absolute MUST for me in modelling and I am really impressed with what T gauge can do. I found this:- https://www.youtube.com/watch?v=xTK3C62yY2g

Now that is a great video to advertise T gauge ….. still needs a flywheel in my opinion but that is terrific movement for such a small scale. It's better than many O gauge locos. Don't know what's with the spooky music in that video, it sounds as if it's coming from Planet Zog ….. or should that be Planet T? :)

Rich

martink
Posts: 260
Joined: Sun Feb 09, 2014 3:13 am
Location: Melbourne, Australia
Contact:

Re: Using T Gauge within O Gauge

Post by martink »

Back when I started with T, I did some measurements of the motor units' electrical characteristics. Each motor unit pulls 20-25mA at full speed, plus another 5mA or so if it has LEDs. That is running on the standard 4.5V battery-powered blue-box PWM controller. As you can see from the oscilloscope trace, the PWM drive pulses from that unit are just over 4V high.


I choose to run mine with 5.5V pulses but with a maximum duty cycle of around 80%, so the average voltage is limited to that same 4.5V but gives me better low speed starting & stopping.

A conventional controller designed for larger scales running off its normal power supply will produce peak voltages of 15V or more, even if you keep the speed knob turned way down. VERY bad for this sort of small motor, and catastrophic if you accidentally bump the control knob. The Gaugemaster controller you linked to has an built-in mains power supply, so you CANNOT prevent or change that. If it is designed for O gauge, then we are talking 20V peaks. If you use a controller with an external power supply and connected a 5 or 6V AC supply, you would probably be safe enough (no promises though), but could not expect any sort of decent slow running - that would certainly be outside the controller's designed operating range.

In practice, the main limitation on slow speed running in T is the unreliable connection between the track and the wheels. A battery-powered system would bypass that and any compact motor controller that you could squeeze into such a model will have to use PWM since that is the only viable way to do it in the available space.

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

That's usefull info Martink, thanks for that. I'm not familiar with oscilliscope readings. Shouldn't there be a zero point somewhere? I can't see it. I can see that each square is 1 volt. Would you call that reading shown as a 50% duty cycle because there's as much high voltage in width as low? To be an 80% duty cycle am I right that the high voltage reading would show as wider, and the low voltage reading would be 20% of that width?

Being a starter in electronics I've got my work cut out trying to decide which receiver to buy out of this lot http://www.deltang.co.uk/. I am a member of MERG so I can ask questions on their forum aswell. Thank you.

Rich

martink
Posts: 260
Joined: Sun Feb 09, 2014 3:13 am
Location: Melbourne, Australia
Contact:

Re: Using T Gauge within O Gauge

Post by martink »

That is a very interesting site. I've been thinking for quite a while now that battery+radio is the way forward for model railways, but alas not quite yet for T gauge. For my N gauge stuff though.... hmmm....

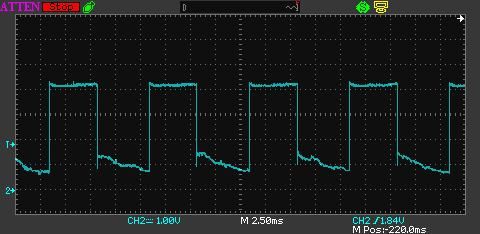

For the 'scope trace, the zero point is the small "2->" in the bottom left - this indicates the zero voltage level for channel 2 (blue). The pulses are about 4.2V high, and the duty cycle is about 45% (on 45%, off 55%), which gave a reasonable speed for the HST. You can also see the back-EMF - between the drive pulses, the motor is acting as a generator and brake, and is so light that you can actually see it slowing down after each pulses.

The point I was trying to make was that the voltage from a single Li battery (4V or so) is just right for T. That should be no surprise, since our motors are borrowed from mobile phone technology which uses just that sort of battery. Our only real problem is mounting them in the tiny bodies. With miniature trains in O scale, that really is a feasible option for you. Your best bet would be to contact that company and see what they suggest.

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

martink wrote:That is a very interesting site. I've been thinking for quite a while now that battery+radio is the way forward for model railways, but alas not quite yet for T gauge.
Well, maybe not that far off for T gauge (as standard gauge). Have a look at my thread Wireless Control for T Gauge:- http://www.talkingtgauge.net/viewtopic.php?f=10&t=410 and get in league with Kupzinger. Infrared (IR) receivers are smaller than radio receivers. If I succede with getting my use of T gauge radio controlled I think I will have a look at IR because even in O gauge the use of such micro electronics will be of use to me.

The guy at DT (or Deltang) supplies these products in his spare time and does not have much time to answer the intricate questions I have. Another guy sells his products:- http://www.micronradiocontrol.co.uk/index.html and he is more ameanable to questions. When I know exactly what I want and what to ask I will ask him. You may get on fine with Mr DT himself if you are much more understanding of the products then me.

I think I understand what you saying about the oscilliscope reading. If it wasn't for the back EMF the reading would go down to zero between pulses. Finding a Lithium battery to fit T gauge might be difficult. The smallest LiPos I think are produced in China but still don't know if they would fit. It might be possble to get about 2 hours running with two button hearing aid batteries.

User avatar
dkightley
Posts: 1247
Joined: Wed Nov 13, 2013 9:43 pm
Location: Nottingham, UK

Re: Using T Gauge within O Gauge

Post by dkightley »

Gosh.....your post has brought back some old memories......

I worked for Micron Radio Control back in the late 1970s when the company was run by it's founder Terry Tippett. I used to help repair and service radio control systems that were sold as DIY kits. Terry's no longer involved with the company; I believe he sold it some 15 years ago to the current owner (Andy, I think his name is).
Doug Kightley
Webmaster here and volunteer at the National Tramway Museum http://www.tramway.co.uk

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

Wow, that's interesting Doug. Yes, that's right it is Andy now. Didn't realise the firm had been going that long, great to know. Radio control equipment is slowly crawling its way from the gigantic garden railway scene into the 21st century world of the micro.

Last weekend was O gauge's biggest event of the year and we don't normally get any radio control stuff there but one guy had a Deltang equiped loco (0-4-0 sadle tank i.e. no tender) on a test track and another guy was displaying a radio controlled loco on a trade stand BUT …… the equipment he used was ENORMOUS! He had to put it in a coach, not a wagon, a coach, BEHIND … a Gresley A4 Pacific! And this is O gauge. It was great that the guy was trying and I just didn't have the heart to tell him these days radio control didn't need to be inside a coach behind a pacific locomotive in O gauge, it didn't even need to be in a tender behind an 0-4-0 shunter. In fact infrared control might …… it just might … even fit inside T gauge. If not now, I don't think it's that far away.

Kupzinger
Posts: 79
Joined: Sat Apr 30, 2016 9:41 pm
Location: Vienna, Austria

Re: Using T Gauge within O Gauge

Post by Kupzinger »

Hi,

Well, at least in T we need a coach for hosting some equipment :) At least the batteries. Today I got a first batch of type 10 hearing aid batteries and: they fit into my class 156 DMU. I am happy... But still busy with painting them rather designing and fitting IR equipment.

cheers
Kupzinger
Attachments
Type 10 battery fits into 1:450 class 156 dmu
Type 10 battery fits into 1:450 class 156 dmu

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

Oh that's excellent Kupzinger. Yes, I expect T gauge will need the coach behind :)

Last night I met someone who has fitted some DT (Deltang) radio equipment into N gauge and saw and had a go with it, so I've found someone local I can discuss with face-to-face this micro equipment, always an advantage. With the project the subject of this thread, aswell as making the locomotive move I also have the extra task I want to achieve of making the driver's head turn, but I don't want it to look robotic so I would rather not use a servo. If his head could be turned using a motor/gearbox (the TM-001) instead of a servo, plus a potentiometer, I am thinking the speed and amount of turn can be altered, making it look less robotic.

Anyway, keep up the good work Kupzinger. Those hearing aid batteries are only about 1.5 volts or something, so to get any speed I reckon you will need two.

Rich

Kupzinger
Posts: 79
Joined: Sat Apr 30, 2016 9:41 pm
Location: Vienna, Austria

Re: Using T Gauge within O Gauge

Post by Kupzinger »

Dear Rich,

good luck with your turning head :) Yes, indeed, I will two, maybe even three batteries. But in sum they are lighter than the extra wight that comes with the adjustable chassis.

Cheers
Kupzinger

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

Well, reckon I've got all the equipment now. The receiver's there (green with arial), 3 volt lithium coin cell sitting on top of it, and on top of that a little motor / gear I want to turn the driver's head. Then there's the read switch and the tiny little magnet to switch it on.

In turning the driver's head I want to have the ability to change the speed and extent of the turn. I originally thought servos could not do that but apparently they can so I have also bought that same motor / gear (as in photo) with the electronic circuit board attached so I can try a servo version. Will experiment to see whether a servo or a motor / gear is best.

Also have to make the mechanics for turning his head. Plan is to have a rod going vertically through his body connected to his head at one end and to a cross piece the other (under his seat). Also have to make the driver's trolley to fit around all the equipment. Want to make it so that the driver can be removed. Don't like to have people permanently attached to things. I think a driver should only occupy a model loco when it is being driven.

Rich
Attachments
5 Inch Gauge Set Up 1b (640x369).jpg
5 Inch Gauge Set Up 1b (640x369).jpg (134.87 KiB) Viewed 14951 times

Kupzinger
Posts: 79
Joined: Sat Apr 30, 2016 9:41 pm
Location: Vienna, Austria

Re: Using T Gauge within O Gauge

Post by Kupzinger »

:) very cool!
What will the reed contact do?
Cheers
Kupzinger

Switcher102
Posts: 37
Joined: Sat Aug 13, 2016 8:25 am

Re: Using T Gauge within O Gauge

Post by Switcher102 »

The reed switch switches it all on, connects it all to the battery. Notice the tiny little magnet 3mm dia to switch it on, that won't look too odd stuck to the side of the driver's trolley. It's the smallest switch I know of that provides the least contact with the model. I don't like clunky switches that involve handling the model. Getting the equipment is the easy bit. Now comes the difficult bit .... putting it all together
:?

Can't remember if I've already mentioned this, I think I linked this site before … http://www.mikromodell.de/index.php?pag ... f=1&i=home … but notice that they have a forum. I know they are dealing in HO scale but they might be able to help you in your quest to wireless control T gauge.

Rich

Kupzinger
Posts: 79
Joined: Sat Apr 30, 2016 9:41 pm
Location: Vienna, Austria

Re: Using T Gauge within O Gauge

Post by Kupzinger »

Hi, thanks for the hints. The idea with the switch is great ... Might steal it :)
Cheers
Kupzinger
